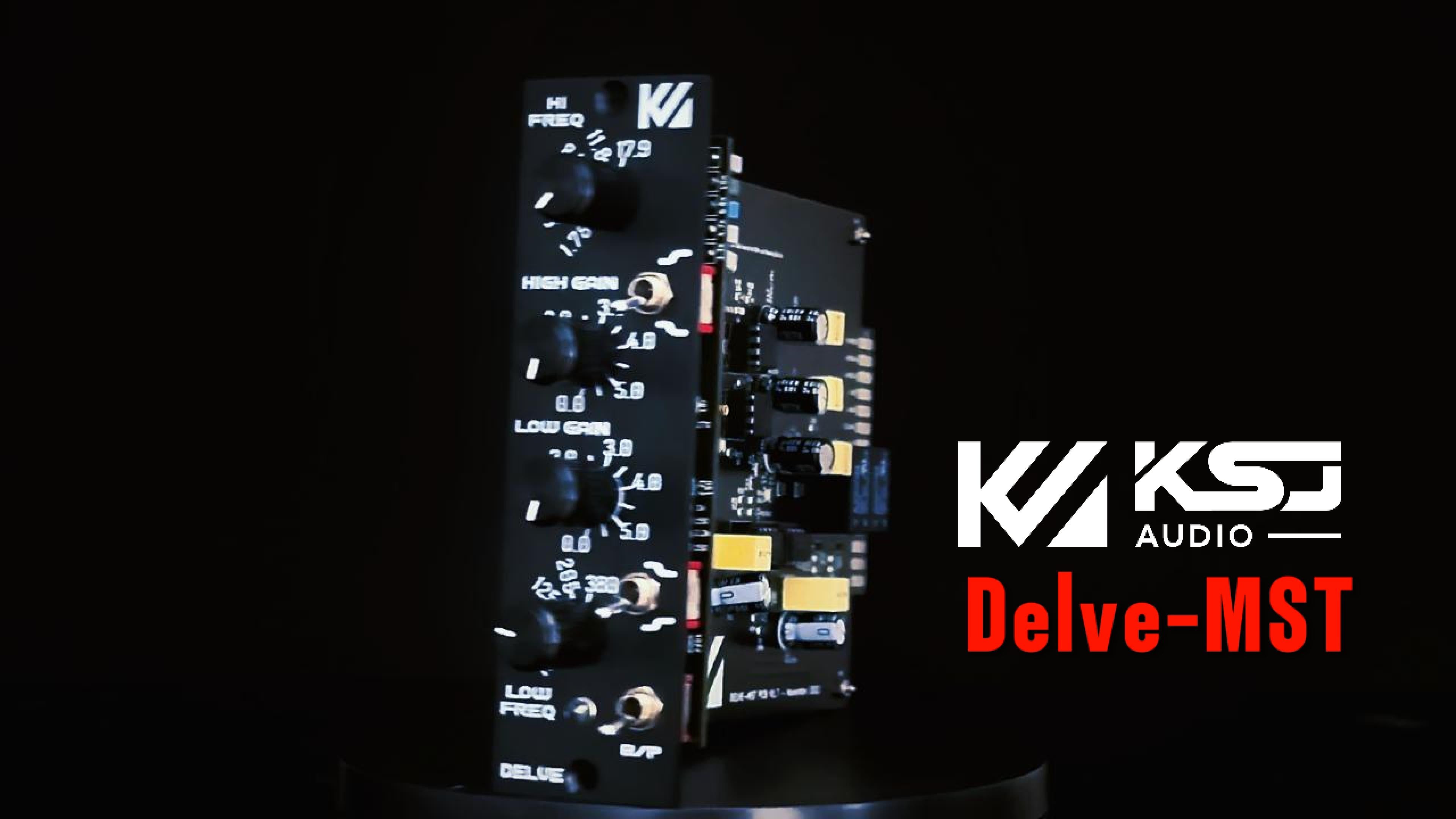

We are excited to introduce the Delve-MST analog shelving equalizer from KSJ Audio. Designed for the API 500 series format, this powerful and versatile equalizer offers a range of tone sculpting possibilities. Featuring high and low-shelf filters with 6 selectable frequencies, a gain knob with 12 steps of 0.5dB, and a boost/cut switch for each band. The Delve-MST provides a comprehensive set of shelving options for mixing or mastering engineers seeking a natural and musical sound, built on stepped switches, with low tolerance components throughout the unit.


The perfect frequency values were selected after immense testing. The low-shelf filters have six different frequencies, ranging from 16Hz to 380Hz, while the high-shelf filters offer 6 frequencies from 1.78kHz to 17.9kHz. The 12-step (Grayhill) rotary switches for gain provide precise control over the level of each band. The boost/cut switch lets you switch the action of a band from boost to cut or vice versa, without changing the gain applied. Each band has a boost and cut range from 0 - 5.5dB, in 0.5dB steps.

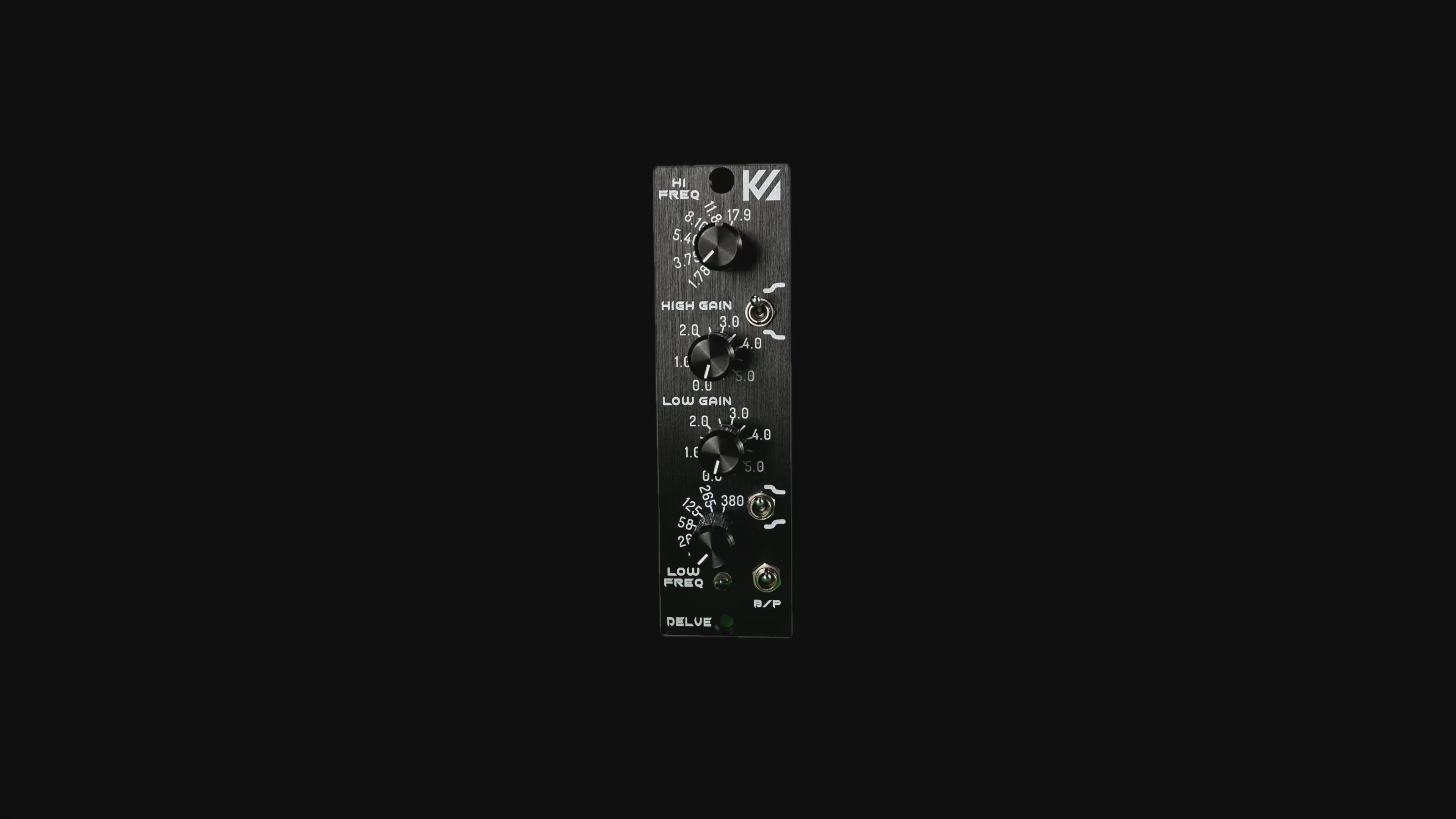

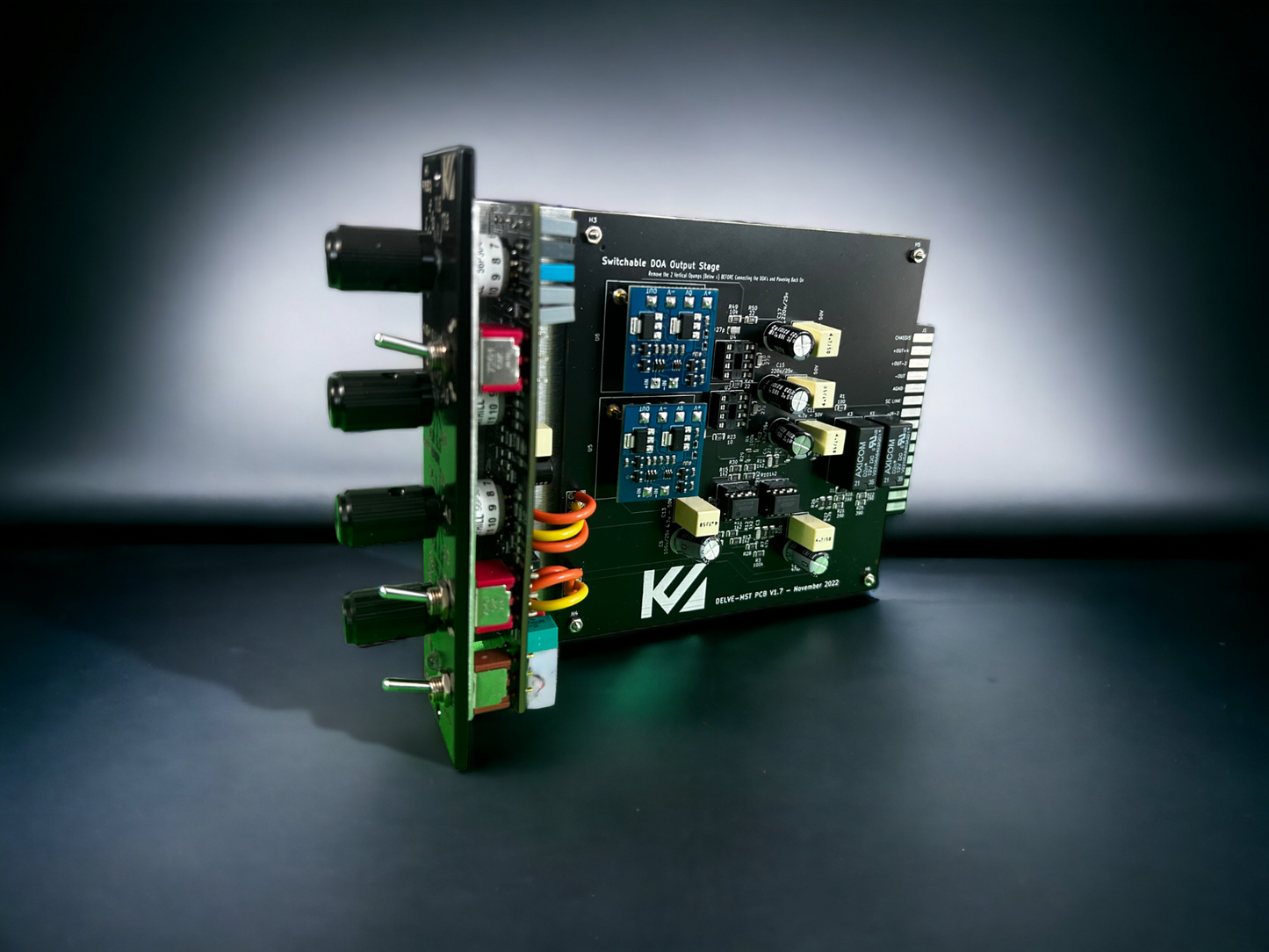

The Delve-MST is built with high-quality components and has an anodized aluminum front panel with metal knobs with a white indicator. Each unit is carefully handmade in Canada with low tolerance components, ensuring the best possible stereo-matching performance, recall & reliability. Additionally, the Delve-MST features a relay-based bypass switch for easy A/B comparisons - with no level drop! As well as an optional swappable discrete input stage with a 2520 Opamp footprint for added versatility in the tone of your equalizer.
